Features

Pumpstation Hekant Trockenaufstellung PE-HD Schacht Werksseitig Vorgefertigt Arbeitssicherheit Betriebssicher

Dry Installation

The pumps and armatures are located in the dry section of the pumping station, providing optimal conditions for operation and ensuring the longevity of technical components.

Clean Working Environment

The separation from the wastewater area creates an ideal, clean, and odor-free workspace. This section is also protected from gases, ensuring maximum workplace safety.

Resistant

The plastic material PE-HD is corrosionresistant against gases and reliably resists chemical components in wastewater. Its smooth interior surface prevents deposits.

Fully Pre-Assembled

The pumping station comes fully equipped and is delivered to the construction site in one piece, ready to be lifted directly from the truck into the excavation.

Anti-Buoyancy System

Depending on the requirements, an antibuoyancy system is factory-welded to the structure. This comes in the form of an enlarged cantilever plate made of PE-HD with a steel-reinforced concrete core.

Armatures

Kordes armatures excel with their highly break-resistant materials and low-maintenance design, featuring minimal assembly and fastening components.

Demanding Applications

The Hekant pumping station is also suitable for water protection areas, as the container is constructed with double walls and can be optionally equipped with continuous leak monitoring.

More Info

Applications

Pumping Stations for Municipal / Industrial Applications

Pumpstation Hekant im Praxiseinsatz Trockenaufstellung Betriebssicher Arbeitssicherheit

Wastewater Pumping Stations in Dry Installation are ideally suited for municipal and industrial wastewater, as well as surface water.

In the municipal sector, special stresses on pumping stations are caused by heavy rainfall, biogas emissions, fats, and fibrous materials. For industrial wastewater, aggressive chemical loads arise from the substances present. Applications for surface runoff from parking lots and roads not only have to deal with heavy rainfall but also face the issue of increased salt content.

Each pumping station must be sized and configured to ensure sufficient resistance for long-term use. Depending on the location, structural safety against buoyancy may be necessary, especially in the presence of groundwater. Our ready-to-install pumping stations minimize construction time, significantly reducing costs for groundwater management, wastewater disposal, and traffic disruptions during the construction phase.

Planning

Customized and Individually Designed

A frequently requested service from our company is planning support. The focus here is on the planning of wastewater pump stations, including the calculation of pumps, calculation of pressure pipelines up to the planning of pressure pipe flushing stations. The planning of EMSR and control technology are also among our strengths.

Pumpstation Hekant Zeichnung 3D Trockenaufstellung PE-HD Schacht Planung Freigabezeichnung
Pumpstation Garant Dorant Hekant Konstrukton Zeichnung 3D Planung Jens Grotegut Experte

When you place your order, you will receive a detailed 2D and 3D drawing from us for your building project. This serves to visualize your new pumping station and facilitates technical optimization before the start of construction. Only when everything is perfect, we start production.

Pumpstation Hekant Zeichnung 2D Trockenaufstellung PE-HD Schacht Planung Freigabezeichnung

Shaft Systems

Variable from A to Z

  • Flexible Installation Depth
  • Internal Shaft Diameter: 2.40 - 3.00 m
  • Tank Material: Double-walled PE-HD Spiral Pipe
  • Load Capacity: up to SLW 60
  • Shaft Cover Plate and Base Plate: Made of PE-HD with a Reinforced Concrete Core
  • Covers: Customizable in Shape, Size, and Material
  • Connections: Freely Configurable in Position, Size, Material, and Number
  • Anti- Buoyancy Protection: Up to 100% Achievable
  • Pumps: Availble in Single, Double or Multiple Units
  • Armatures: Made of Stainless Steel or Cast Iron
  • Piping: Made of Stainless Steel, Cast Iron or PE
  • Pumps: Tailored to Meet Specific Requirements
  • Control Technology: Custom-designed to Individual Planning
Pumpstation Hekant Schmitt 2D Trockenaufstellung PE-HD Schacht Doppelwandig

PE-HD

What Makes PE-HD Special?

PE-HD Granulat Rohmaterial für Pumpstation Dorant Hekant Wasserdicht Stabil Leicht Glatte Oberfläche

High density polyethylene (PE-HD) is a versatile plastic. This material is one of the most widely used materials in the field of industrial and municipal wastewater.

Thanks to its organic composition of purely carbon and hydrogen, which prevents the diffusion of toxic substances, PE stands for sustainability and an excellent environmental profile.

  • Long Service Life
  • Shaft Material: Made of PE-100 with the Appropriate DIBt Certification
  • Weldable: Suitable for Extrusion Welding
  • Extremely High Bending Strength
  • Temperature Resistance: from -50 to +70 °C
  • Chemical Resistance: Resistant to Salts, Acids, Alkalis, Solvents, Oils, Fats, and Gases
  • Lightweight: Facilitates Easier Installation
  • The anti-adhesive inner surface (k<0.05mm) prevents deposits on the shaft wall
Querschnitt Behälterwand PE-HD Doppelwandig Schachtmantelrohr Pumpstation Dorant Hekant Stabil Wasserdicht

Installation

The pumping station is installed in one piece within a few hours

Einbau Pumpstation Dorant Hekant Lieferung Sattelschlepper liegend Werksseitig Vorgefertigt PE-HD Schacht leicht
Einbau Pumpstation Dorant Hekant Entladung Kran Aufrichten Sandhaufen Werksseitig Vorgefertigt PE-HD Schacht leicht
Einbau Pumpstation Dorant Hekant Versetzen mit Kran in Baugrube Werksseitig Vorgefertigt PE-HD Schacht leicht
Einbau Pumpstation Dorant Hekant Versetzen mit Kran in Baugrube Herablassen Werksseitig Vorgefertigt PE-HD Schacht leicht
Einbau Pumpstation Dorant Hekant Versetzt mit Kran in Baugrube Werksseitig Vorgefertigt PE-HD Schacht leicht

Buoyancy-Proof and Quickly Operational, Even with High Groundwater Levels

Einbau Pumpstation Dorant Hekant Versetzt in Baugrube Werksseitig Vorgefertigt PE-HD Schacht Spundwände Grundwasser Auftriebssicher
Auftriebssicherung PE-HD Schacht Stahlbeton Bodenplatte Pumpstation Dorant Hekant Statik Grundwasser

Comparison

Advantages Over Traditional Construction Methods

Construction Site: How a Dry-Installed
pumping Station is Typically Built

Stahlbetonschacht in vor Ort Bauweise für große klassische Pumpwerke

Delivery of a Fully Pre-Assembled
Dry-Installed HEKANT Pumping Station

Pumpstation Hekant Lieferung mit Sattelschlepper Kranentladung PE-HD Schacht Leicht
  • The Pumping Station is Delivered Fully Assembled, Including All Technical Components
  • Installation Errors Are Eliminated
  • Installation Time: within 2 Hours
  • Cover Plate: Made of PE-HD with a Steelreinforced Concrete Core, Permanently Welded to the Shaft Casing Pipe
  • Underside and Dome Entry Fully Lined with PE-HD
  • Sealed Construction: The Cover Plate is Securely and Tightly Welded to the Shaft Casing Pipe
  • Direct Load Transfer: The Load is Transferred Directly from the Cover Plate to the Shaf Casing Pipe
  • PE-HD Base Plate with Steel-Reinforced Concrete Core
  • No Stress or Vibrations: The Special Kordes Connection System between the Concrete and PE-HD Eliminates Stress and Vibrations.
  • Factory-Welded Buoyancy Protection: The Buoyancy Protection is Factory-Welded as a Cantilevered Base Plate to Meet Specific Requirements

Armatures

Dry Installation of the Armatures and Pumps

Pumpstation Hekant Trockenaufstellung Innenraum Trockenbereich Pumpen Armaturen Arbeitssicherheit
Armatur Pumpstation Hekant Doppelanlage Schieber Pumpen in Trockenaufstellung vertikal
  • Pumps in Horizontal or Vertical Configuration
  • Ball Check Valve
  • Shut-Off Gate Valve on Suction and Discharge Sides
  • Drainage Pump with Armature in Dry Area
  • Optional: Flushing Connection, MID

Armatures and Pipings

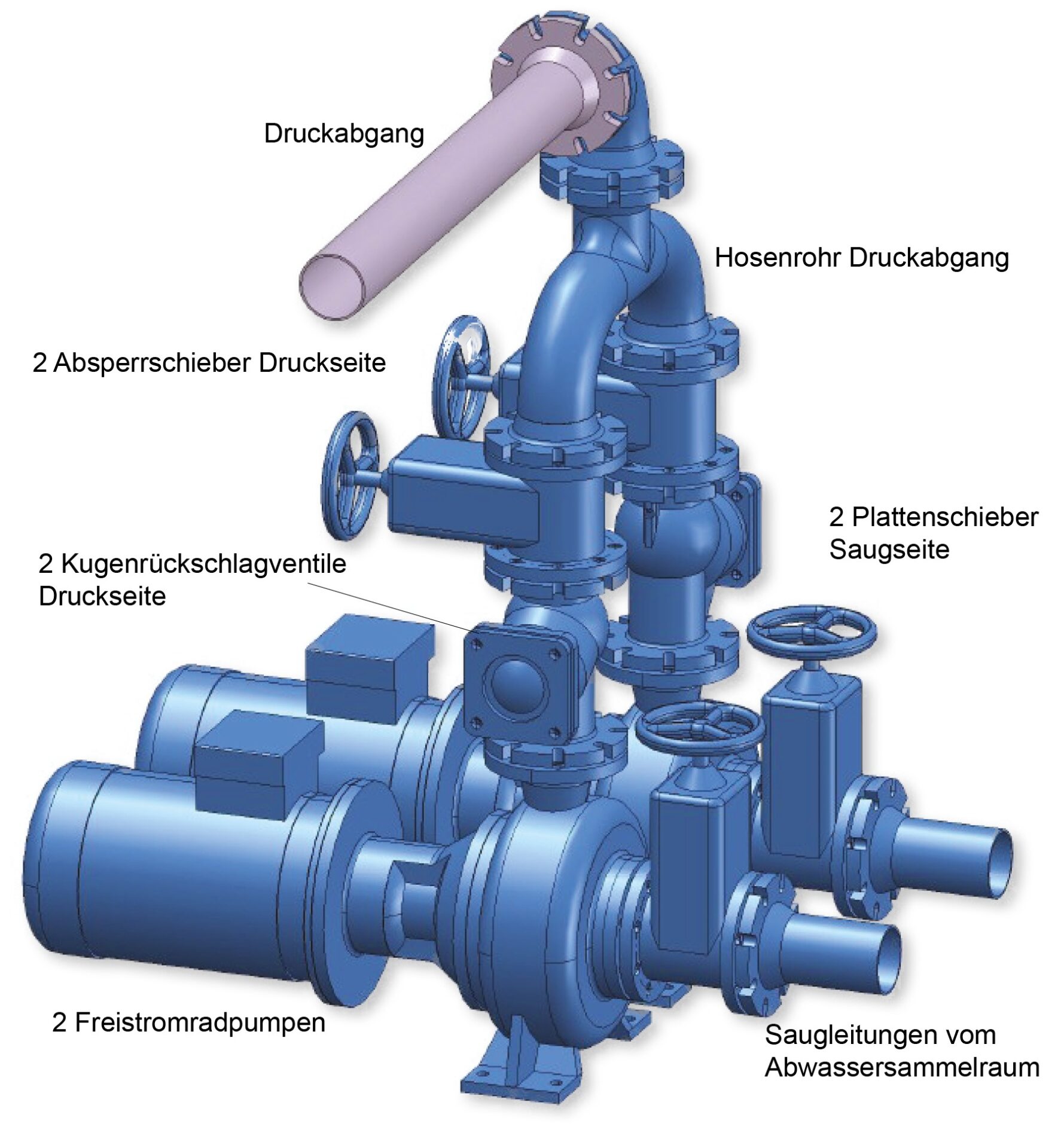

Armatur Pumpstation Hekant Doppelanlage Schieber Pumpen in Trockenaufstellung horizontal

Pumps

Pumpe in Trockenaufstellung Freistromradpumpe Abwasser Pumpstation Hekant KSB Betriebssicher

For optimum flow rate and flow velocity, armatures, pressure lines and pumps must be precisely matched to the requirements of your construction site. Our product range extends from pumps with cutting impeller system for small wastewater volumes with admixtures, to pumps with free-flow impeller system. Both variants are available with and without explosion protection. For certain types of wastewater, pumps with special resistance to corrosive substances are also required.

Do not leave the right selection of your pump to chance and let us support you in the correct design. So that we can offer you the pump that is best suited for your construction site, we work together with the leading manufacturers of wastewater pumps. Our valve system can be combined with almost all common pumps with DIN flange.

Control Unit

With our Kordes control systems, we can operate single, double, or multiple units. Our controls are used by commercial and municipal facility operators and can be customized with electronic components as needed. For municipal wastewater management, we also provide PLC-controlled systems, complete with process visualization and remote monitoring technology. We are happy to supply a matching control cabinet for your project. At our facility, the control system and desired components are fully assembled and tested in the control cabinet according to your specifications.

WDN Control Unit

Pumpstation Steuerung Schaltschrank Garant Dornat Hekant Außenschrank
Pumpstation Steuerung Schaltschrank Garant Dornat Hekant Außenschrank offen
  • Customizable Control System Design for Municipal Applications

CEN / CDN Control Unit

Pumpstation Steuerung Steuergerät Garant Dornat Hekant Typ CEN CDN
  • Connection: up to 20 kW / 40 A
  • Dimensions According to Equipment
  • Direct Start, Soft Start, Star-Delta Start
  • 3 Potential-Free Contacts with Optional Expansion
  • Level Measurement: Differential Pressure, Float Switch, Pressure Sensor
  • Touch Color Display: Backlit
  • Error Log: Full-text Display
  • Manual Operation
  • External Lockout of Pumps
  • Operating Hours Recording
  • Current Measurement
  • Thermal Monitoring of the Pumps
  • Alerts: Overcurrent, Overheating, High Water, Runtime Monitoring
  • Optional Air Injection
  • Optional Power Failure Monitoring
  • Optional: GSM Modem with Qualified Notifications

CEB / CDB Control Unit

Steuerung Pumpstation Variant Garant Dorant Henakt Abwasser Typ CEB CDB
  • Connection Capacity: Up to 5,5 kW / 9 A
  • W/H/D = 265 x 270 x 145 m
  • Direct Start
  • 3 Potential-Free Contacts
  • Level Measurement: Differential Pressure, Float Switch, Pressure Sensor
  • Touch Color Display: Backlit
  • Error Log: Full-text Display
  • Manual Operation
  • External Lockout of Pumps
  • Operating Hours Recording
  • Current Measurement
  • Thermal Monitoring of the Pumps
  • Alerts: Overcurrent, Overheating, High Water Level, Runtime Monitoring
  • Optional Air Injection
  • Optional Power Failure Monitoring
  • Optional: GSM Modem with Qualified Notifications

Accessories

Access Ladder

Pumping stations require a safe entry option. For this purpose, we install stainless steel ladders with safety steps available in widths of 300mm and 400mm. A retractable entry aid provides additional safety when entering. For deeper pumping stations, we offer a climbing protection system or an intermediate platform in accordance with accident prevention regulations (UVV) for fall protection.

Leiter Absturzsicherung Zwischendecke Arbeitssicherheit Einbau in Pumpstationen Garant Dorant Hekant

Pipe Penetration

For a tight connection between the shaft and the pipe, we offer Kordes ConFix feed-through systems. They form a permanently elastic, tight connection between the pipe and the concrete or PE-HD wall. Pipes made of cast iron, steel and plastic are sealed gas- and watertight in core drill holes or lining pipes by pressing together an NBR rubber ring by means of two V2A stainless steel flanges.

Ringraumdichtung Confix Zubehör Wasserdicht Druckwasserdicht Leitungsduchführung für Behälterwand Pumpstation Kläranlage

Plug and Spindle Gate Valves

In the case of pumping stations, it is sometimes desirable to be able to shut off the supply lines for work in the shaft. For this we offer plug-in or spindle gate valves for the appropriate pipe diameter. It is operated mechanically or by an electric drive. The controller can be connected to the BMS.

Pumpstation Zubehör Zulaufschieber Absprerrschieber Garant Dorant Hekant

Shaft Ventilation

For proper shaft ventilation, appropriate stainless steel or PE-HD pipes should be installed within the shaft. To terminate the underground piping, we offer stainless steel ventilation chimneys in DN 100 / DN 150. The stainless steel cover can be optionally equipped with a vent cap.

Belüftung Entlüftung Schacht Luftzirkulation Korrosionsschutz

Covers

We offer shaft covers depending on your requirements in square or round shape as BEGU, in cast iron or stainless steel. The shaft system corresponds to the load class SLW 60, so that shaft covers from class A to D can be freely selected.

Schachtabdeckung Kl.A Kl.B Kl.D Begut Edelstahl Pumpstation Kläranlage

Armature Shaft

Armatures are typically located within the pumping station, but some operators prefer having them in a separate shaft, which we offer as a prefabricated unit in PE-HD or reinforced concrete. Inductive flow measurement devices or ventilation valves can also be conveniently installed in separate shafts.

Armaturenschacht als Nachschaltung für Pumpstation PE-HD Schacht für Garant Dorant

Technical Building

We optionally offer a suitable technical building for your pumping station. We coordinate the equipment with you individually to ensure an optimal solution for future operations.

Betriebsgebäude Technikgebäude für Pumpstation Garant Dorant Hekant optimale Betriebsführung
